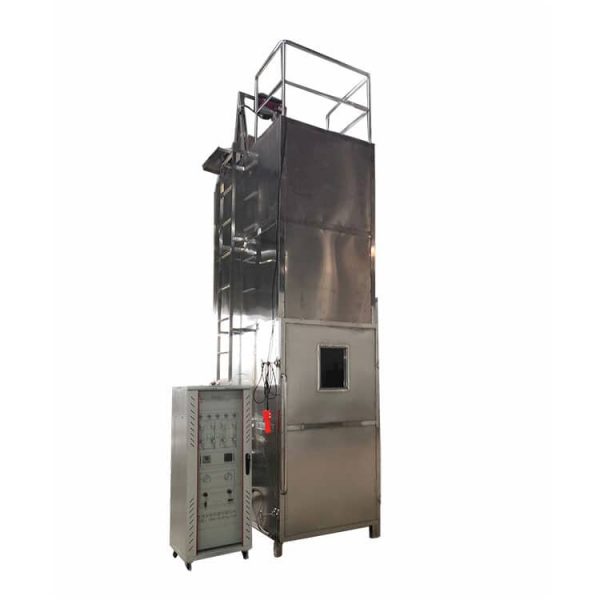

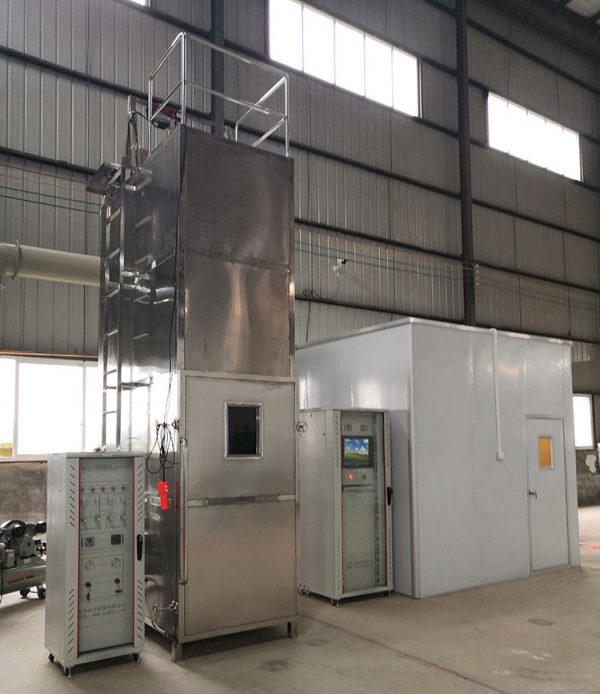

Wire and Cable Bundle Burning Tester AH68013

Standard:

GB/T18380.(31-36)-2008

IEC60332-3-10: 2000

Technical parameters:

• Burning chamber uses 70mm thickness double-sided stainless steel rock wool board assembled, inner size: 1000*2000*4000mm.
• One inlet space of 800(W)*400(D), at the bottom of chamber, 150mm to chamber front wall. Air intake: 5m³/h.
• Outlet space of 300(W)*1000(D)mm, at the top of chamber.
• Standard stainless steel ladder size: 500(W)*3500(H)mm, 1 pcs.
• Wide stainless steel ladder size: 800(W)*3500(H)mm, 1 pcs.
• Strip standard propane burner unit, 2 pcs
• Venturi gas mixing device, 2 pcs
• Pressure gauge and pressure reducing valve device, can adjust propane and air press into 0.1 Mpa.
• Rotameter to regulate and set gas flow.
• The chamber has steel ladders and railings for easy detection at the top.
• Equipped with ball valve to close the air supply manually.
• Can automatically set the burning test time, when the time is over, the air source will be cut off automatically.
• Thermocouple inside the chamber, which can display the internal temperature.
• Anemometer 1 pcs, used to measure the wind speed at the top of chamber.

Specification:

• Burning chamber dimension: 1120*2195*5077 mm
• Control cabinet dimension: 800*800*1800 mm
• Power: AC 220V, 50/60Hz, 2A.
• Gas source: Propane, air (Customer-owned).
