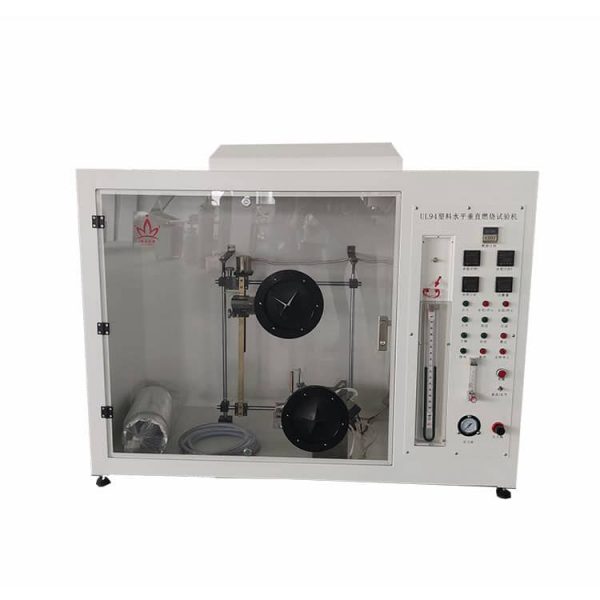

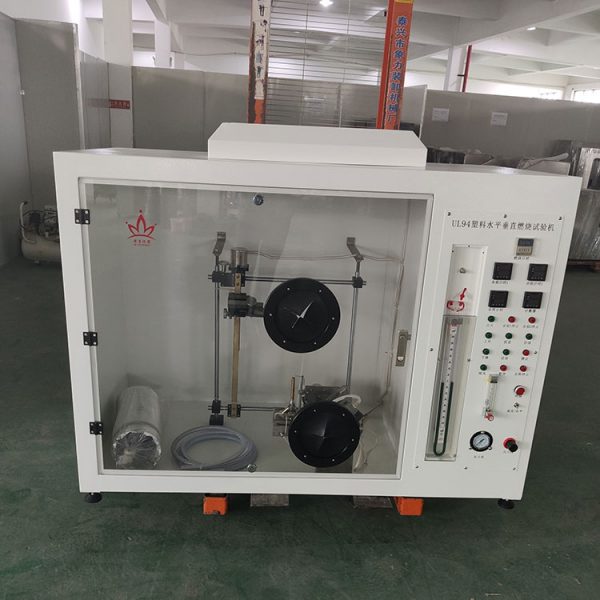

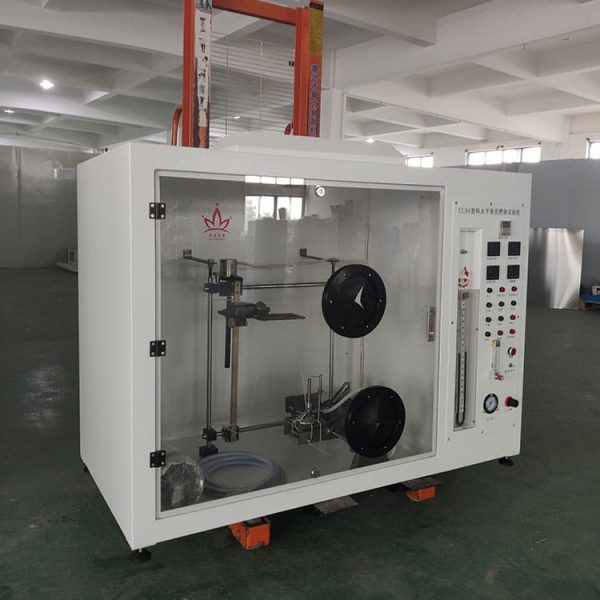

UL94 Plastic Horizontal and Vertical Burning Tester AH68024
UL94 Plastic Horizontal and Vertical Burning Tester is used for testing plastic or film’s non-inflammability when in provisions fire source under the fire burning directly, in order to judge the material’s refractory level.
Burner positioning | Motor driven |
---|---|
Ignition time | Anytime between 0-99.99s |
Flame height | Adjustable |
Angle transformation | Push-pull device, 90°, 20°, 45° |
Details About UL94 Plastic Horizontal and Vertical Burning Tester AH68024
UL94 is the most important UL testing standard about fire safety testing methods. It’s very important to electrical industrial used plastic. This testing method is designed based on the UL to plastic flame retardant properties. It’s not only for electrical industry, also applied to many other areas, suitable for lighting equipment, low voltage electric appliance, household appliances, machines, tools, instruments and other equipment and electrical fittings and electrical and electronic products, production and QC department, also applies to insulation materials, engineering plastics or other solid combustible material industry
Standard:
GB/T2408-2008
UL94
Technical parameters:
- Burner positioning: Motor driven
- Ignition time: Anytime between 0-99.99s. After-flame time and twilight time all can be automatically recorded.
- Flame height: Adjustable
- Angle transformation: Push-pull device, 90°, 20°, 45°.
- Burner: Imported from Hamburg, U.S. Meet the standard of ASTM D 5025-99.
- Flow meter: 0.1-1L/Min
- Inner diameter of burner: 9.5mm
Specification:
- Overall dimension: 1050*750*1400 mm
- Power: AC220V, 50Hz, 1A
