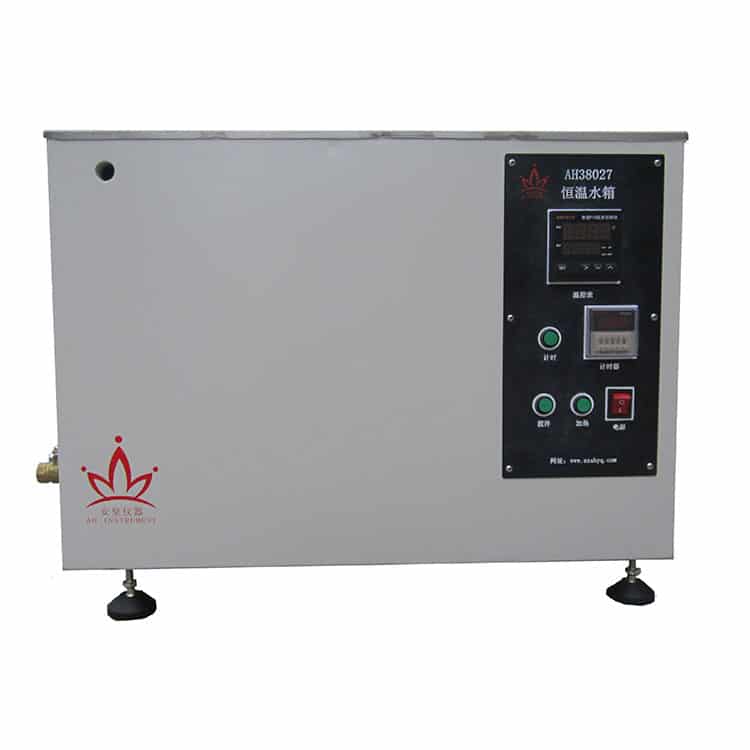

Thermostatic Water Tank AH38027
Thermostatic Water Tank is used for testing the insulation resistance and pressurization value when wire is in the water. It should be used together with the insulation resistance tester and withstand voltage tester.
| Inner material | Stainless steel |
|---|---|
| Temperature Range | RT-98℃ |
Details About Thermostatic Water Tank AH38027
Standard:
GB/T 2951.13-2008
UL 1581
Technical parameters:
- Material:
- Inner: Stainless steel
- Outer: Electrostatic paint
- Size:
| Inner size (L*W*H, mm) | Outer size (L*W*H, mm) | Temperature Range | Electric heating power (W) | Input power (V) |
| 300*300*300 | 650*350*450 | RT-98℃ | 2000 | 220 |
| 800*500*600 | 1150*550*800 | RT-98℃ | 6000 | 380 |
| 1150*600*800 | 1550*650*950 | RT-98℃ | 12000 | 380 |
| 1300*1500*1500 | 1690*1950*1950 | RT-98℃ | 12000 | 380 |
Dimensions above are only for reference, can be customized.
