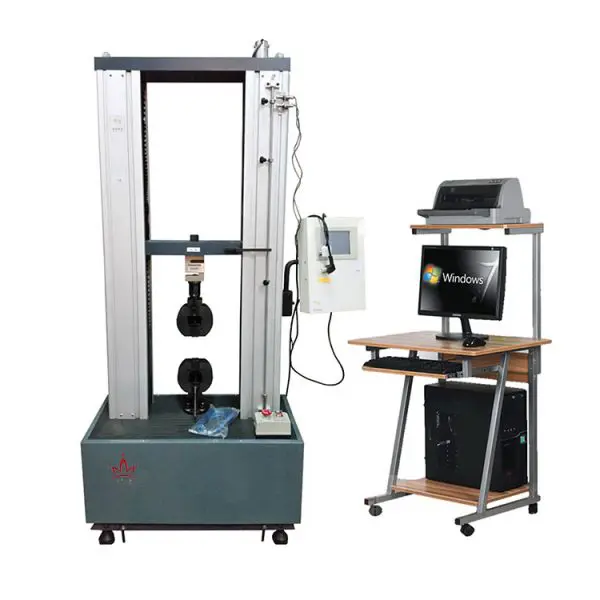

Servo Universal Testing Machine Tensile Tester

Servo Universal Testing Machine Tensile Tester uses the advanced machinery, electronic PCI acquisition card and computer technology, which can record the whole test process’s test piece’s load, variable displacement and through the relationship between the change of time by the form of curve, for studying the materials’ nature or manufacturing process quality control, and so on. This machine is mainly used for various materials’ tensile, compression, bending, shearing test.

Test force measurement range	2%~100%FS
Motor	Servo Motor
Test force sensor	U.S. Transcell company force sensor
Machine screw	Taiwan ABBA high carbon screw

Details About Servo Universal Testing Machine Tensile Tester

Standards:

GB/T 228-2002

GB/T16825-1997

Technical parameters:

Force sensor: 5KN, 10KN, 20KN (Customers’ self choice)
Test force measurement range: 2%~100%FS
Test force indicated value relative error: ≤ ±0.5% indicated value
Force resolution: 1/500000
Transformation indicated value relative error: ≤ ±0.5% indicated value
Displacement measurement device: Optical encoder
Displacement relative error: ≤ ±0.5% indicated value
Displacement resulation: 001 mm
Motor: Servo Motor
Test force sensor: U.S. Transcell company force sensor
Machine screw: Taiwan ABBA high carbon screw
Guide bar: Korea Taijing guide rod production, surface after high temperature and hard chrome plating, more than HRC60
Dustproof device: Taiwan suppression stack dust cover to protect the screw
Control: Intelligent LCD touch screen or PC
Safety protection device: Mechanical limit protection and software overload protection
Effective tensile space: 800 mm
Effective compression space: 750 mm
Effective test width: 400 mm
Clip clamping mode: Manual intensify
Clip configuration: Tensile, peel, tear (Customers’ self choice, or customized according to customer requirements)
