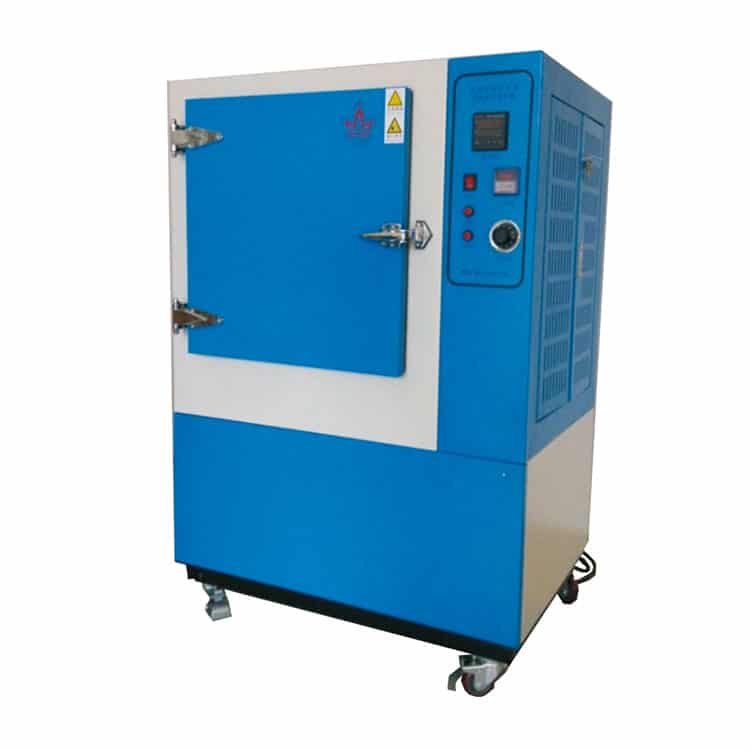

Natural Ventilation Aging Oven AH38044
Natural Ventilation Aging Oven is used for wire, cable, rubber and plastic industry as natural ventilation thermal aging test. It can be used together with our company’s BG5331 hot-extensions test device to do cable and optical cable’s insulation and sheath’s hot extensions test.
| Temperature range | RT-250℃ |
|---|---|
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | ±2℃ |
| Heating up time | RT-250℃, about 40 Min |
Details About Natural Ventilation Aging Oven AH38044
Features:
- Working studio is made of stainless steel, and shell is made of high quality steel plate, and surface is after the treatment of spray paint anti-corrosion.
- Door seals use heat-resistance silicone rubber, which is healthy and safety.
- Temperature control adopts digital instrumentation, which is easy for operation.
Standard:
GB/T2951-2008
Technical parameters:
- Temperature range: RT-250℃
- Temperature fluctuation: ±0.5℃
- Temperature uniformity: ±2℃
- Heating up time: RT-250℃, about 40 Min
- Ventilation volumes: 8-20/H
- Inner size: 430*450*500 mm
- Inner material: SUS#304 stainless steel, outer: baking paint.
- Insulation material: 80mm thick high density rock wool.
- With temperature protection
Specification:
- Overall dimension: 950*750*1400 mm
- Power: AC220V, 50/60HZ, 16A, 2KW
