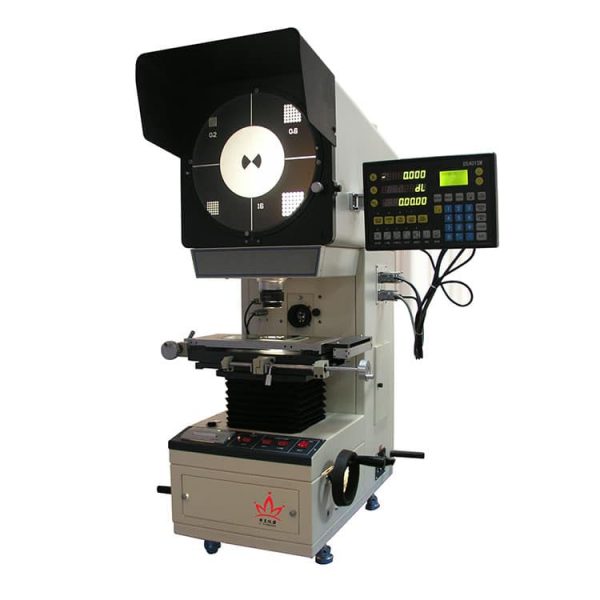

Insulation Projector (Digital display) AH22050

Features:

• Efficient testing, excellent optical system, clear objective images, and accurate magnification.
• When in the transmitted light lighting, the measurement error will be less than 0.08%.
• Measurement error can reach (3+L/75)μm, (L: specimen length, units: mm)

Technical parameters:

• Working table:
• Metal table size: 320*220mm
• Glass table size: Φ190mm
• X coordinate stroke: 150mm
• Y coordinate stroke: 50mm
• Z coordinate stroke (used for focusing): 80mm
• Measurement accuracy: 4+L/50
• Digital display resolution of X, Y coordinate: 0.001
• projection screen:
• Size(mm): Φ312, range >Φ300
• Projection rotating range: 0-360°
• Rotation Angle of digital display resolution : 1°
• Objective:
• Magnification: 10X (standard configuration), 20X (optional)
• Object field: Φ30mm, Φ15mm (for 20X)
• Object work distance: 85.17mm, 81.94mm (for 20X)
• Data processing system: 3000 type multi-functional data processing system
• Instrument lighting: 24 V, 150W halogen tungsten lamp
• Cooling mode: Air cooling (3 pcs of axial flow fans)

Specification:

• Power: AC220V, 50/60HZ, total power: 350W
• Overall dimension: 720*390*1100mm
• Weight: 175KG
