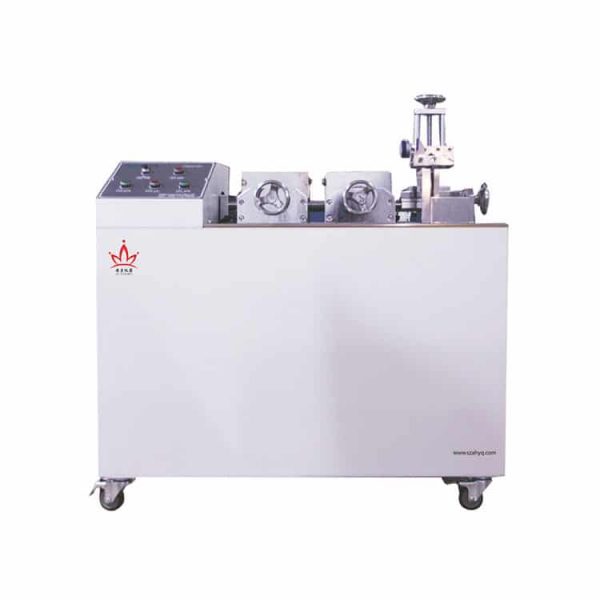

Cross-linked (XLPE) cable Slice Machine AH41038
Cross-linked (XLPE) cable Slice Machine AH41038 is applicable to GB11017, GB/T2951, GB12706 requirements for the preparation of samples, supporting the cable insulation structure, thickness measurement, thermal elongation, semiconductor resistivity, tensile strength of insulation, elongation at break and other tests.
| Max working travel | 400mm |
|---|---|
| Slicing range | 0.5-2mm |
| Cross-section function | Yes |
Details About Cross-linked (XLPE) cable Slice Machine AH41038
Summary:
Prepare cable sheath (insulation) specimens, including planing axial long sheets, cross-section sheets, longitudinally slitting jackets (insulation), etc., to meet the requirements of the product; the sliding part of the equipment is equipped with machine-specific dovetail slots. Precision drive screws make the equipment run smoother and more ready.
Standard:
GB/T 12706-2002
GB-11017 GB/T2951
Technical parameters:
- Max working travel: 400mm
- Slicing range: 0.5-2mm
- Transversely slicing sample’s width: 10-70mm
- Longitudinally slicing sample’s diameter: 10-70mm
- With cross-section function
Specification:
- Overall dimension: 800*450*600 mm
- Power: AC220V, 50/60Hz, 3A
- Conductor removal device: Optional
