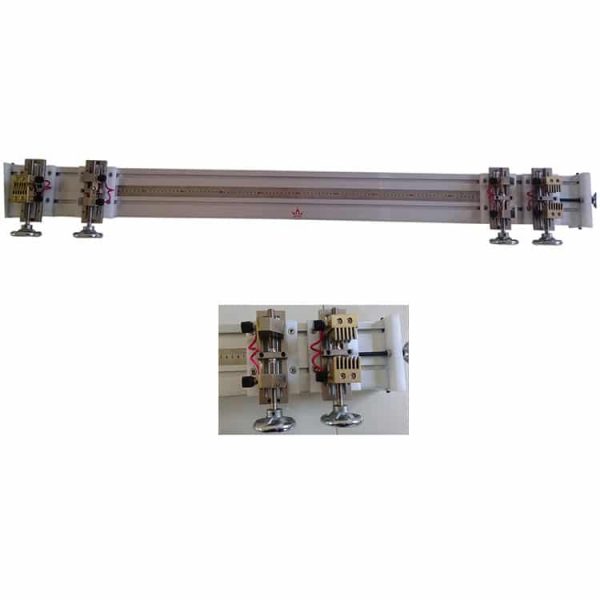

Bridge Fixture AH58027
Bridge Fixture, distance between each end of the potential chuck and current clamp is not less than sample section’s perimeter 1 to 5 times, it can be divided into bare conductor series and stranded wire conductor series according to the usage. All the materials adopt the electro-chemical double-slot aluminum alloy base plate, and the shape and structure are redesigned to make it more reasonable.
Details About Bridge Fixture AH58027
Standard:
GB/T 3048
Technical parameters:
- Conductor resistance test for conductor round and stranded conductors.
- A is applied to the round and round wire conductors whose sectional area is less than 630mm².
- B is applied to the round and round wire conductors whose sectional area is less than 1200mm².
Specification:
- Overall dimension: 1546*231*125mm (630mm²)
1546*231*150mm (1200mm²)
