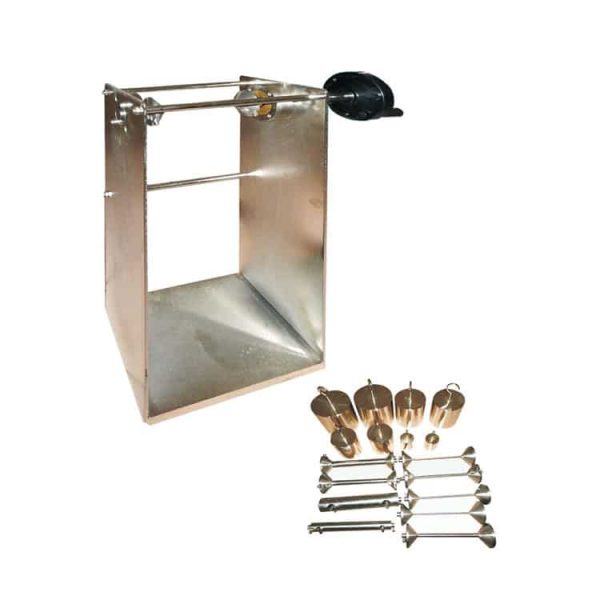

Automotive Wires Low temperature Winding Tester
Automotive Wires Low temperature Winding Tester is used for testing the round cable or round insulation wire-core’s property when they’re in very low temperature.
| Sample | ＜10mm² |
|---|---|
| Winding bar diameter | Φ6, Φ10, Φ15, Φ20, Φ40, each 1 pcs |
| Station | Station |
| Tester’s material | Stainless steel |
Details About Automotive Wires Low temperature Winding Tester
Standard:
QC/T730-2005
Technical parameters:
- Sample: ＜10mm²
- Winding bar diameter: Φ6, Φ10, Φ15, Φ20, Φ40, each 1 pcs.
- Weights: 0.5kg, 2.5kg, 5kg, 8kg, 10kg, each 2 pcs.
- Sample winding rounds: ＜3
- Tester’s material: Stainless steel
- Station: 2
- This test device is used together with the low temperature chamber.
