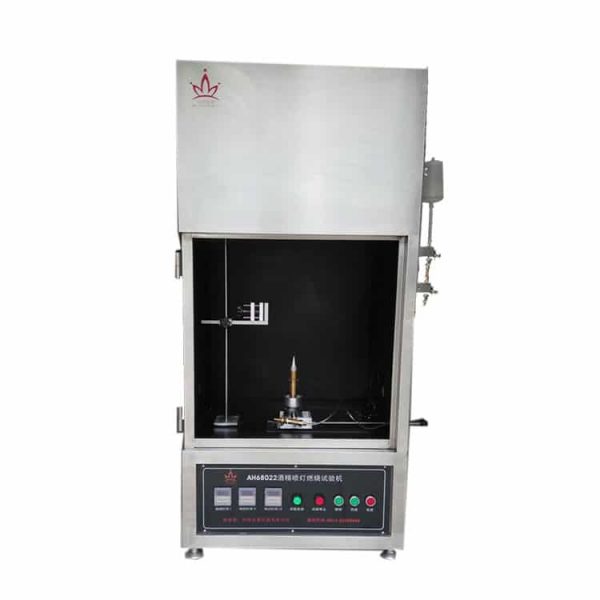

Alcohol Blowtorch Burning Tester AH68022
Alcohol Blowtorch Burning Tester is used for testing the flame resistance of coal mine with nonmetal products, such as hair-dryer coating cloth, conveyor belt, tubing, plastic net etc.
| Burning time | Any time between 0-999.9s, standard: 30s |
|---|---|
| Open-flame and blazing time timer | 0-999.9s, accuracy: ±0.01s |
| Inner dimension of burning chamber | 660*660*1000mm, stainless steel |
| Flame temperature | 960 ± 60 ° C |
Details About Alcohol Blowtorch Burning Tester AH68022
Applicable scope:
Coal-used PVC PVG, coal-used polymer products, coal-used plastic pipe, coal-used rubber pipe, hydraulic support with hose and so on.
Standard:
MT 181-1988
MT 558.1-2005
GB/T3685-1996
GB/T413-1996
Technical parameters:
- Six parts: Alcohol burner flame blower, Burner base, specimen holder, Fuel bottle, Burning experiment box, and purging system
- Use precise hung alcohol blowtorch.
- Burning time: Any time between 0-999.9s, standard: 30s.
- Open-flame and blazing time timer: 0-999.9s, accuracy: ±0.01s
- Inner dimension of burning chamber: 660*660*1000mm, stainless steel.
- Fuel: 5% (GB338) methanol and 95% (GB394) Ethanol mixture
- Flame temperature: 960 ± 60 ° C.
- Flame height: 150-180mm.
Specification:
- Overall dimension: 700*660*1100 mm
- Power: AC220V, 50Hz, 50W
- Fuel: Methanol and ethanol (Customers-owned)
